Utility-Scale Energy Storage

Inedge Vault V5016

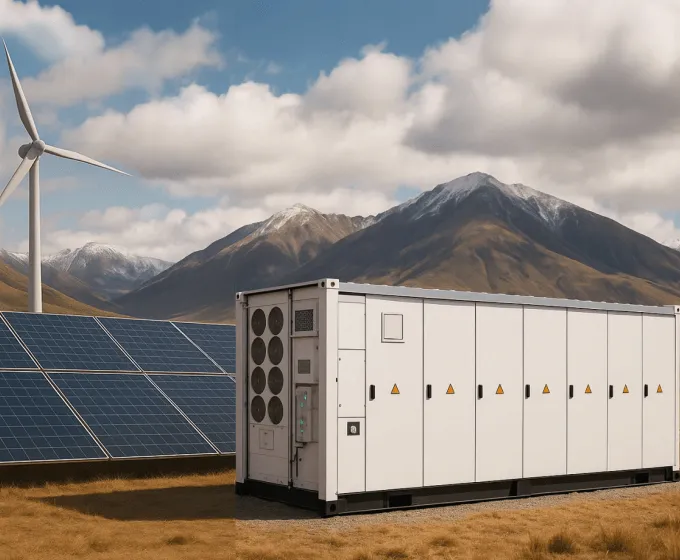

5MWh Liquid-Cooled Energy Storage Container

Key Features

5MWh-class capacity supports large-scale renewable integration and grid-side dispatch within a compact container footprint.

Multi-level electrical, thermal, and battery protection supports dependable operation across demanding project environments.

Balanced thermal management improves temperature consistency, battery life, and charging and discharging efficiency.

5.016MWh20ft BESSLiquid Cooling

5MWh 20ft Liquid-cooling BESS
Product Model	Inedge Vault V5016
Product Type	Lithium iron phosphate battery system
NO.	Items	Specifications
1	Configuration	12 * (4 * 1P104S)
2	Rated Energy	5.016MWh
3	Rated Voltage	1331.2Vdc
4	Voltage Scope	1164.8 - 1497.6Vdc
5	Rated Charge	2.5MW
6	Rated Discharge	2.5MW
7	Auxiliary Power (Voltage Scope)	400V AC +/-5%, 50Hz
8	Storage Temperature	-35 C to +55 C
	Work Temperature	-30 C to +50 C (derating above 45 C)
	Application Altitude	Below 2000 m (derating required above 2000 m)
9	Dimension	6058 mm * 2438 mm * 2896 mm (L * W * H)
	Color	RAL 9003 (standard color)
	Weight	Approx. 42 t
	IP Level	IP55
	Cooling Method	Liquid cooling
	Communication Protocol	PCS: CAN/RS485; EMS: IEC61850
	Coolant	50% glycol and water liquid
